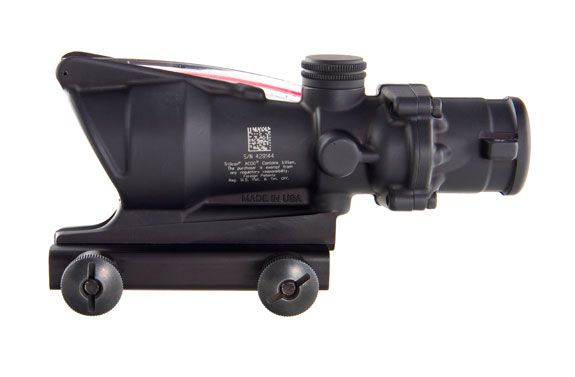

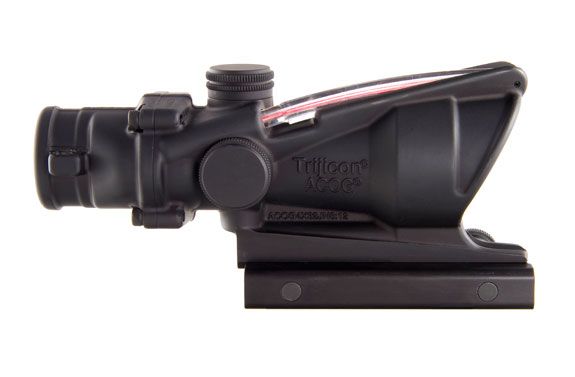

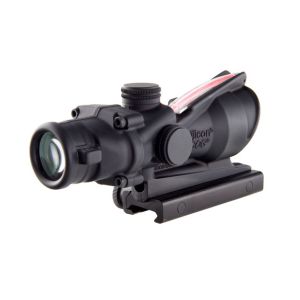

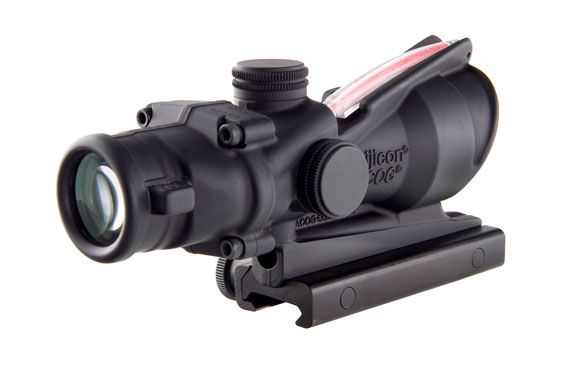

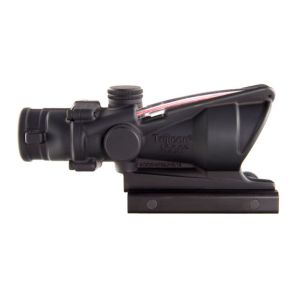

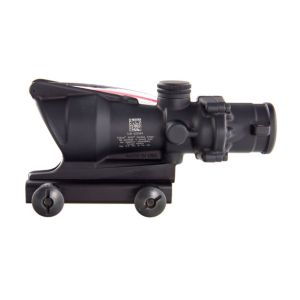

Trijicon 4x32 ACOG, Dual Illuminated Red Chevron .223 Ballistic Reticle w/ TA51 Flattop Mount

Be the first to review this product

$1,502.00

The TA31RCO is an Advanced Combat Optical Gunsight (ACOG) designed for the M4 and M4A1 weapon system (14.5" barrel). It incorporates dual illumination technology using a combination of fiber optics and self-luminous tritium. This allows the aiming point to always be illuminated without the use of batteries. The tritium illuminates the aiming point in total darkness, and the fiber optic self-adjusts reticle brightness during daylight according to ambient light conditions. This allows the operator to keep both eyes open while engaging targets and maintaining maximum situational awareness.

Availability:Out of stock

Description

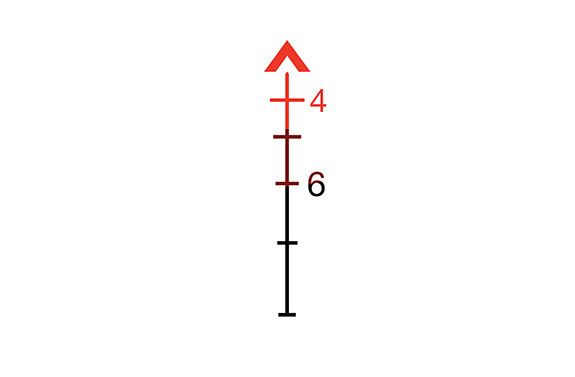

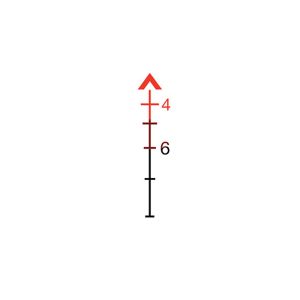

The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 cal) flattop rifles out to 800 meters.

The TA31F also includes:
1 Flattop Mount (TA51)
1 4x32 Scopecoat (TA64)
1 LENSPEN® (TA56)
1 Lanyard Assembly for Adjuster Caps (TA71E)
1 Trijicon Logo Sticker (PR15)
1 ACOG Manual
1 Warranty Card

Magnification	4x
Objective Size (mm)	32
Bullet Drop Compensator	Yes
Length (in)	5.8
Weight (oz)	9.9 w/out mount
Illumination Source	Fiber Optics & Tritium
Reticle Pattern	Chevron
Day Reticle Color	Red
Night Reticle Color	Red
Calibration	0.223
Bindon Aiming Concept	Yes
Eye Relief (in)	1.5
Exit Pupil (mm)	8
Field of View (Degrees)	7
Field of View @ 100 yards (ft)	36.8
Adjustment @ 100 yards (clicks/in)	2
Mount	TA51
Mount Comes With	TA51
Housing Material	Forged Aluminum
