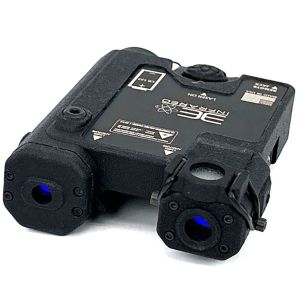

USNV DIR-ONE V (VCSEL) Dual Beam Infrared Laser / VCSEL IR Illuminator / Black

Features:

• Infrared Laser / VCSEL Illuminator w/ Diffuser Filter
• Innovative Fire Button Placement
• Momentary Or Constant Infrared Pointer / VCSEL Laser Operation
• MIL-STD Crane Remote Switch Connector
• Remote Crane Pressure Switch (Optional)
• Arisaka Defense 1913 Picatinny Rail Mount
• Arisaka Defense Fire Control Button (Momentary/Constant)
• Intuitive “User Only” Activation Light
• Windage / Elevation Adjustable

Technical Specifications:

• Size / Dimensions: L- 3.3″ W- 3.1″ H- .5″ (over bore)
• Weight (No Battery): 4.5 oz
• Battery: (1) CR123 +.56 oz
• Battery Life: > 6 hours
• Environmental IP68 (submersible 1m, 3 min.)
• Housing Tensile Strength – 7549 psi
• Operating Temperature -20°C to 60°C (-4°F to 140°F)
• Warranty 2 years (best in industry)

IR Laser: Infrared:

• Output Power: > 2.5 mW Class 3R
• Beam Divergence: .5 mrad
• Wavelength: 830 nm
• Range: > 1000 m

VCSEL Illuminator Infrared:

• Output Power: > 130 mW Class 3R
• Beam Divergence: 3 Degree
• Wavelength: 850 nm
• Range: > 300 m
